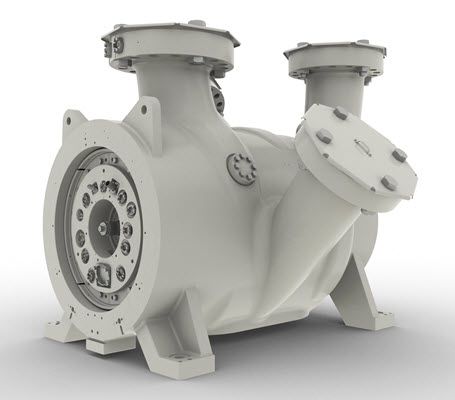

C51 Dual Compartment

Solar® C51 gas compressors are designed for applications with the Taurus™ 60, Taurus 70, Mars® 90, Mars 100, Titan™ 130 and Titan 250 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging.

The C51 gas compressor and the C51 Dual Compartment gas compressor with intercooling have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.

C51 Dual Compartment

ISO Performance/Specifications

Units:
Stages 2-12 2-12
Maximum Casing Pressure 3000 psig 20,685 kPag
Maximum Flow 12,000 acfm 339 m3 /min
Maximum Total Head 13,000 ft-lbf/lbm 39 kJ/kg
Efficiency - % >72-85% polytropic >72-85% polytropic
Maximum Speed 12,000 rpm 12,000 rpm
Maximum Torque 275,000 lbf-in 31,071 Nm

Production Compressors

The right compressor for your upstream applications. Unmatched high head, high efficiency, and wide flow range.

Learn More

C51 Dual Compartment Gas Compressors Data Sheet
