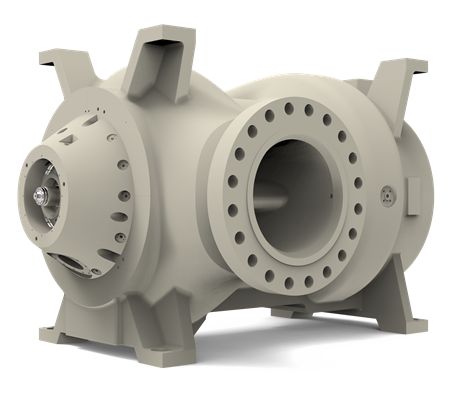

C71

The Solar® C71 family of gas compressors is designed for applications with the Titan™ 130, Titan 250 and Titan 350 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging.

The C71 gas compressor has the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 7000 compressors. This compressor is designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.

C71

ISO Performance/Specifications

Units:
Stages 3-10 3-10
Maximum Casing Pressure 2000 psig 13,790 kPag
Maximum Flow 40,000 acfm 1132 m3 /min
Maximum Total Head 90,000 ft-lbf/lbm 269 kJ/kg
Efficiency - % >85% isentropic >85% isentropic
Maximum Speed 8250 rpm 8250 rpm
Maximum Torque 1,058,600 lbf-in 119,605 Nm

C71 Gas Compressors Data Sheet

Learn More
