Titan 350 - 35 MW

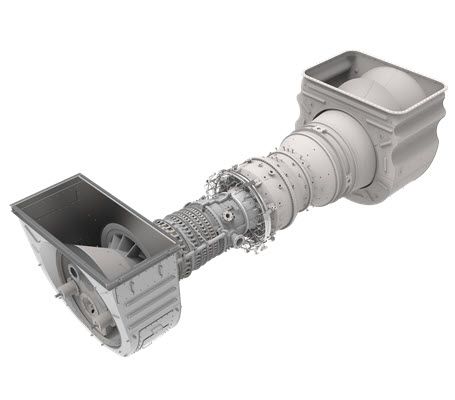

Titan 350 Compressor Set

The Titan™ 350 is a world class highly efficient gas turbine designed for the gas compression market in the 35-39 MW range. This product has robust design features based on the proud legacy of the Titan product line and is well suited for gas compression applications in both the upstream and midstream markets.

Titan 350 - 35 MW Compressor Set


Power 47,000 hp 35,000 kW
Heat Rate 6250 Btu/hp-hr 8845 kJ/kW-hr
Exhaust Flow 820,080 lb/hr 371,980 kg/hr
Exhaust Temperature 860ºF 460ºC
Combustion System SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional
  • Introduced in 2022
  • 41% Efficiency, Shaft
  • Modular Package Design
  • Wide Fuel Range Including H2 Blends
  • High Power Density, Improved Availability, Durability and Serviceability
  • SoLoNOx Low Emissions Options at 9, 15, and 25 ppm NOx on Natural Gas
  • Available for Compressor Set, Mechanical Drive and Generator Set Applications
  • All Packages Capable of InSight Monitoring System; Global Fleet Connectivity
  • Supported by a Worldwide Customer Service Organization

Titan 350 Gas Turbine Compressor Set Data Sheet

Titan 350 Gas Turbine Compressor Set, 35 MW
