Power Generation Packages

Saturn 20

< Back

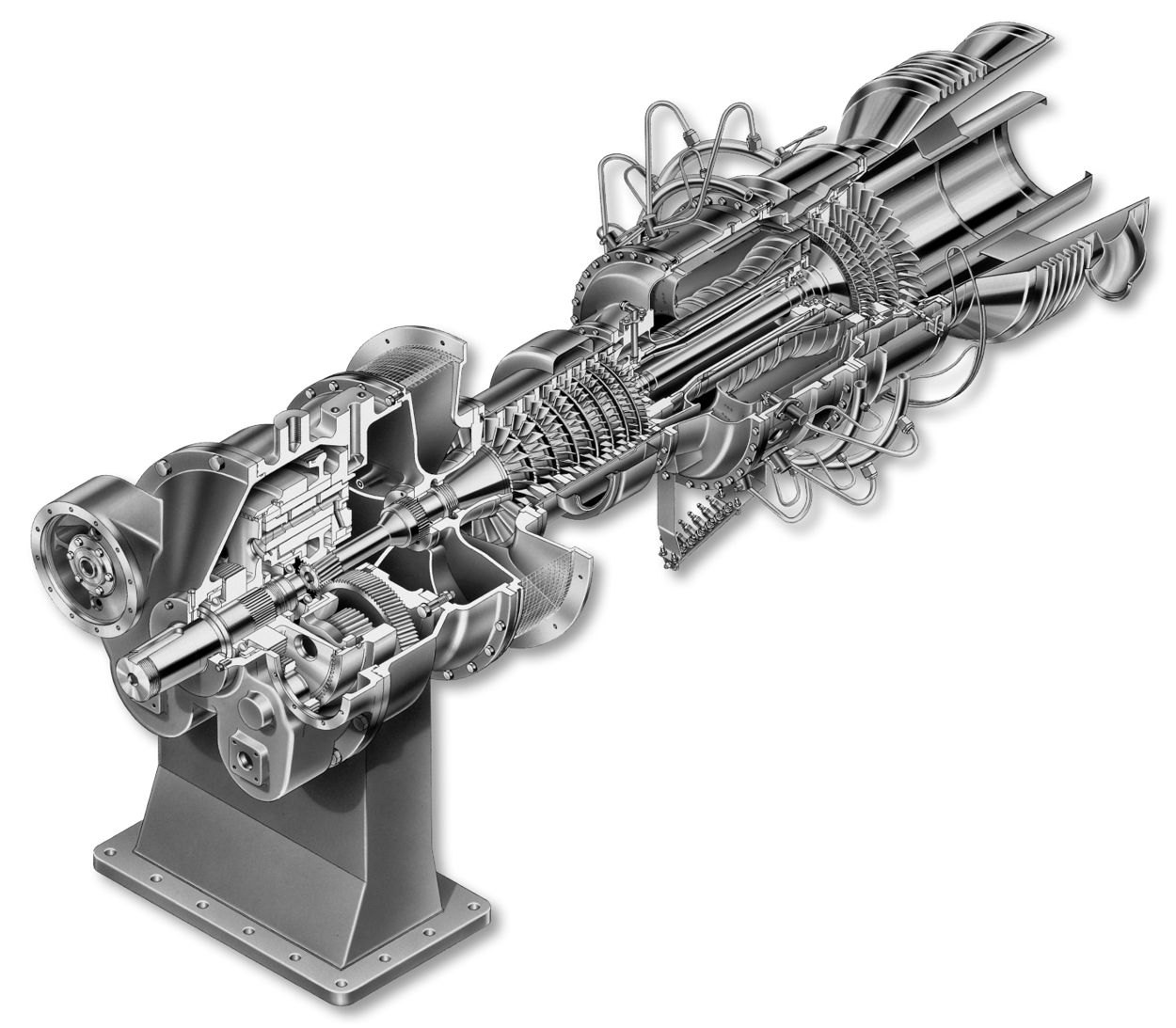

SATURN 20 PG - Generator Set

Saturn gas®turbines have proven themselves in over 4800 installations. Introduced in 1960, they have logged more than 620-million operating hours and are available in a single-shaft, constant-speed configuration for driving generators.

ISO Performance/Specifications

Units:
Power 1210 kWe 1210 kWe
Heat Rate 14,025 Btu/kWe-hr 14 795 kJ/kW-hr
Exhaust Flow 51,890 lb/hr 23 540 kg/hr
Exhaust Temperature 940ºF 505ºC
Steam Production 8715 - 39,130 lb/hr 4.0 -17.7 tonnes/hr
Axial Exhaust Yes Yes
Radial Exhaust — —
SoLoNOx No No
Ultra Lean Premix — —
  • Introduced in 1960
  • High Efficiency, Simple-Cycle Gas Turbine
  • Designed for Long-Life Industrial Applications
  • Designed-In Maintainability
  • 30-Year Core Engine Service Life
  • 30,000 Hours; Time Between Overhaul (TBO) Interval

Saturn 20 Gas Turbine Generator Set – Power Generation Data Sheet

Learn More

Combined Heat and Power/Direct Drying – Ceramic Sichenia

In order to reduce their costs at the energy-intensive factory, Ceramica Sichenia installed a 1.1 MWe Saturn 20 gas turbine generator set.

Learn More
