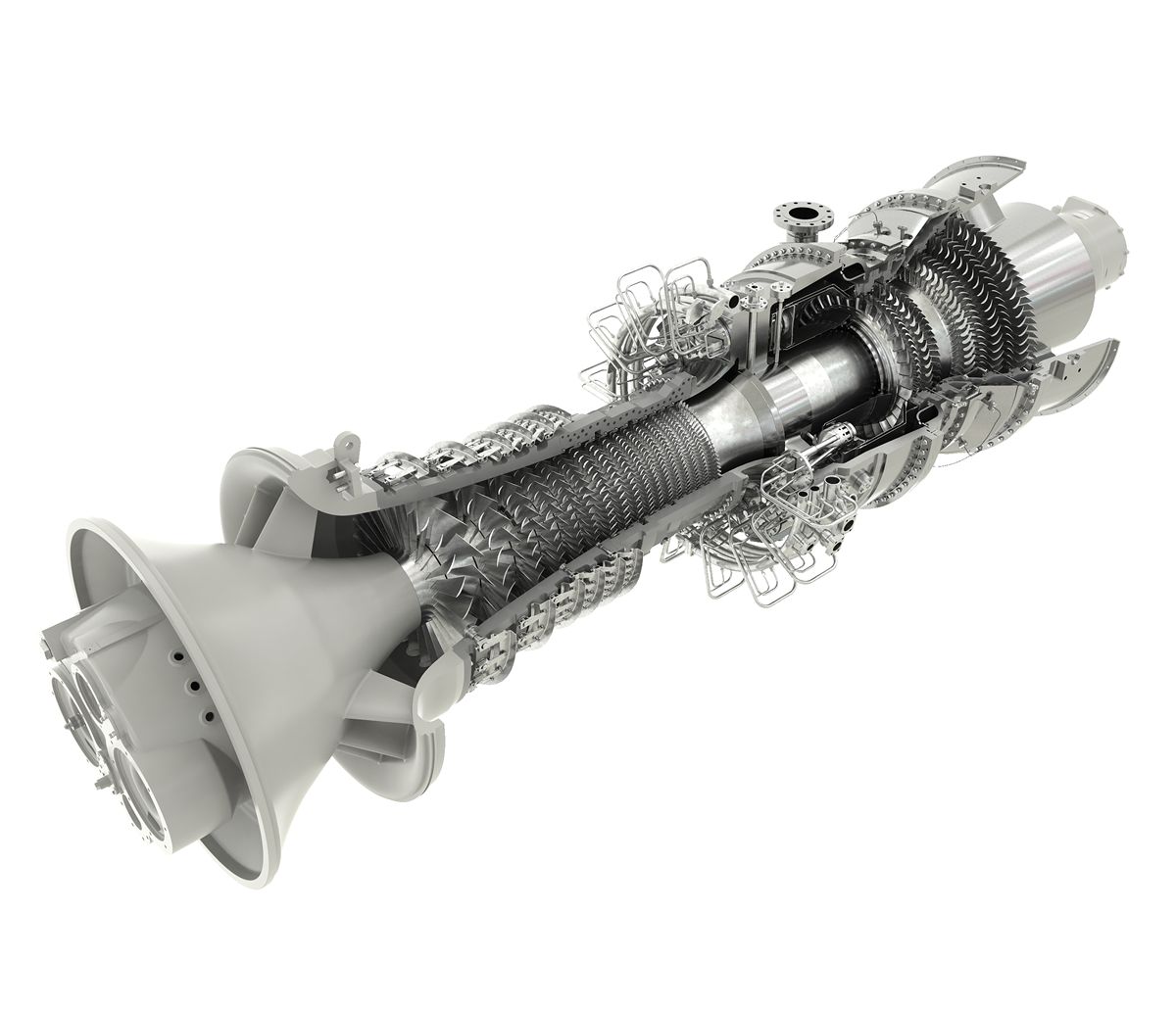

Titan 250 Gas Turbine Generator Set

The Titan™ 250 is our most powerful gas turbine package and is based on proven technologies from other Solar Turbines models. It produces 50 percent more power in the same footprint as the Titan 130, while providing 40 percent shaft efficiency with emissions reduced by up to 30 percent.

ISO Performance/Specifications

Units:
Power 23 100 kWe 23 100 kWe
Heat Rate 8775 Btu/hp-hr 9260 kJ/kW-hr
Exhaust Flow 541,590 lb/hr 245 660kg/hr
Exhaust Temperature 865ºF 465ºC
Axial Exhaust
Radial Exhaust
SoLoNOx Yes Yes
  • Introduced in 2009
  • 40% Efficiency, Shaft
  • Wide Fuel Range
  • High Power Density, Improved Availability, Durability and Serviceability
  • SoLoNOx Low Emissions Options at 9, 15, and 25 ppm NOx on Natural Gas
  • Available for Compressor Set, Mechanical Drive and Generator Set Applications
  • All Packages Capable of InSight Monitoring System; Global Fleet Connectivity
