Titan 250

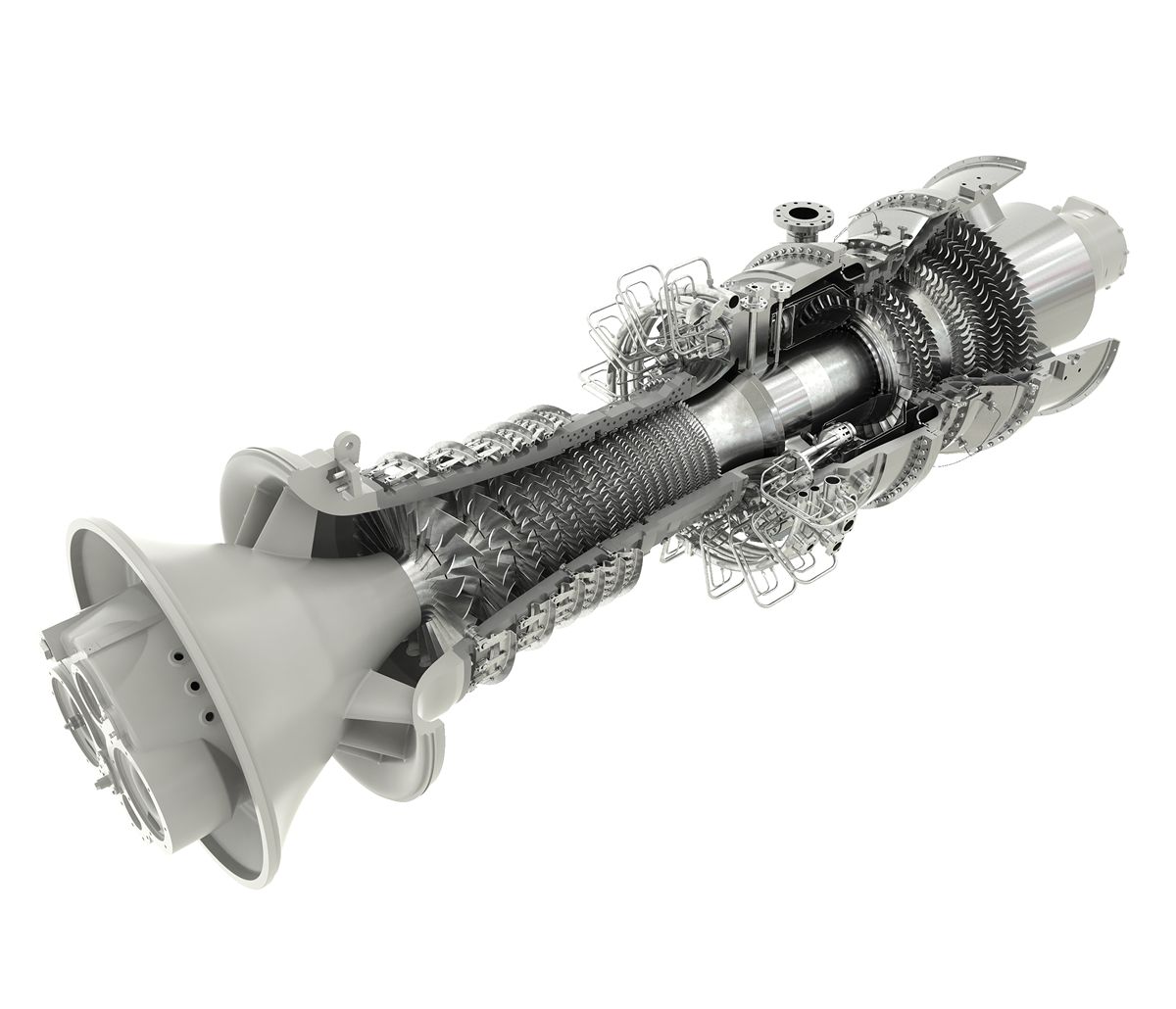

Titan 250 Compressor Set

The Titan™ 250 is based on proven technologies from other Solar Turbines models. It produces 50 percent more power in the same footprint as the Titan 130, while providing 40 percent shaft efficiency with emissions reduced up to 30 percent.

Titan 250 Compressor Set


Power 31,900 hp 23,790 kW
Heat Rate 6360 Btu/hp-hr 9000 kJ/kW-hr
Exhaust Flow 541,590 lb/hr 245,660 kg/hr
Exhaust Temperature 865ºF 465ºC
Combustion System SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional
  • Introduced in 2009
  • 40% Efficiency, Shaft
  • Wide Fuel Range
  • High Power Density, Improved Availability, Durability and Serviceability
  • SoLoNOx Low Emissions Options at 9, 15, and 25 ppm NOx on Natural Gas
  • Available for Compressor Set, Mechanical Drive and Generator Set Applications
  • All Packages Capable of InSight Monitoring System; Global Fleet Connectivity

Titan 250 Gas Turbine Compressor Set Data Sheet
