Solar C45 压缩机系列专为采用 Taurus™ 70、Mars® 90、Mars 100 和 Titan™ 130 燃气涡轮机的应用而设计。这些压缩机效率高、流量范围广而且设计可靠、易重组。

C45 压缩机采用最新的先进技术,并融合了我们生产和安装 5000 多台压缩机后积累的经验和可靠性设计。这些压缩机的设计符合 API 617 要求,即关于此设备可能遇到的恶劣环境和工作条件的要求。

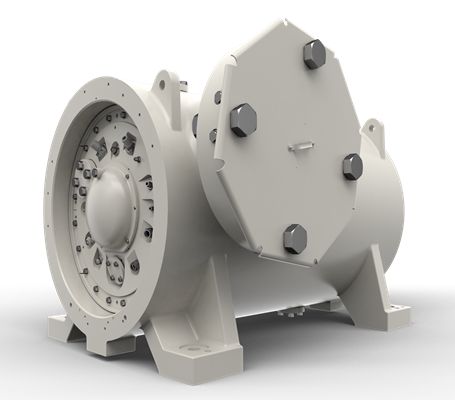

Solar’s C45 family of gas compressors are designed for applications with the Taurus™ 70, Mars® 90, Mars 100 and Titan™ 130 gas turbines. These compressors combine high efficiency and wide flow range with a robust design and ease of restaging.

C45 gas compressors have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.

ISO 性能/技术规格

阶段 1-3 1-3
最大壳压 1600 psig 11,030 kPag
最大流量 17,000 acfm 481 m3 /min
最大总压头 36,000 ft-lbf/lbm 108 kJ/kg
效率 - % >88% isentropic >88% isentropic
最大速度 12,000 rpm 12,000 rpm
最大扭矩 185,000 lbf-in 20,900 Nm


Solar 压缩机以耐用可靠著称,服务一流、效率高而且运行范围广。


C45 管道压缩机数据表
